MB AMD AM4 Gigabyte A520M K V2

Šifra: 44223
6.872,00 din.
- + Količina
Štampaj

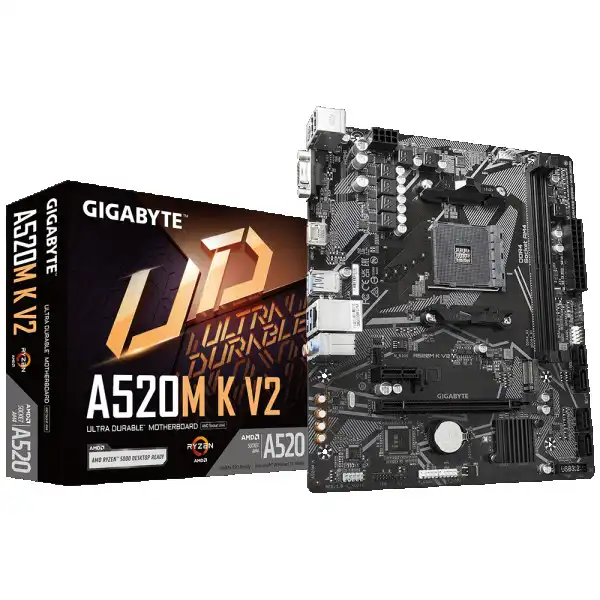

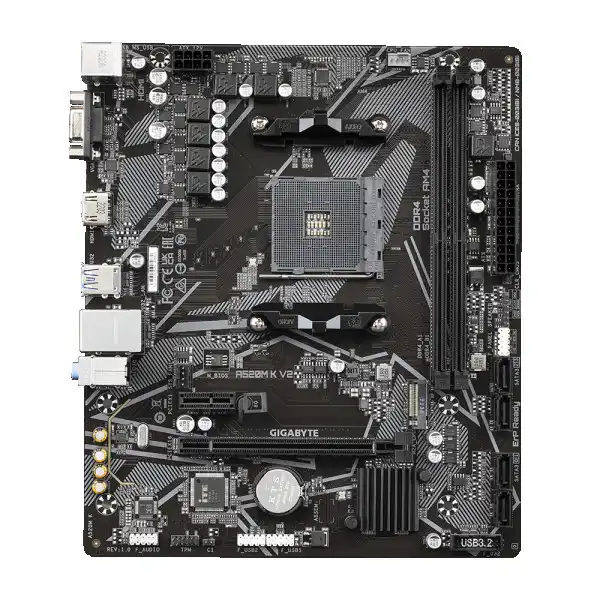

ModelGigabyte A520M K V2 Matična ploča DDR4 AM4 Micro ATX
Procesorsko podnožje (Socket)AMD Socket AM4
Skup čipova (Chipset)AMD A520
Podrška za procesoreAMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
Tip memorije (RAM)DDR4
Broj memorijskih slotova2x 288-Pin DDR4
Podrška za memorije2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Podrška za grafiku - portoviIntegrated Graphics Processor:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Maximum shared memory of 16 GB
Slotovi za proširenjaCPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 portovi1x M.2 Socket 3
Čuvanje podataka - portoviCPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:
4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10
U.2 portovinema
SATA Express portovinema
SATA portovi4x SATA 6Gb/s
LANRealtek® GbE LAN chip (1 Gbps/100 Mbps)
Zvuk (Audio)Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
USB portoviCPU:
4 x USB 3.2 Gen 1 ports on the back panel

Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

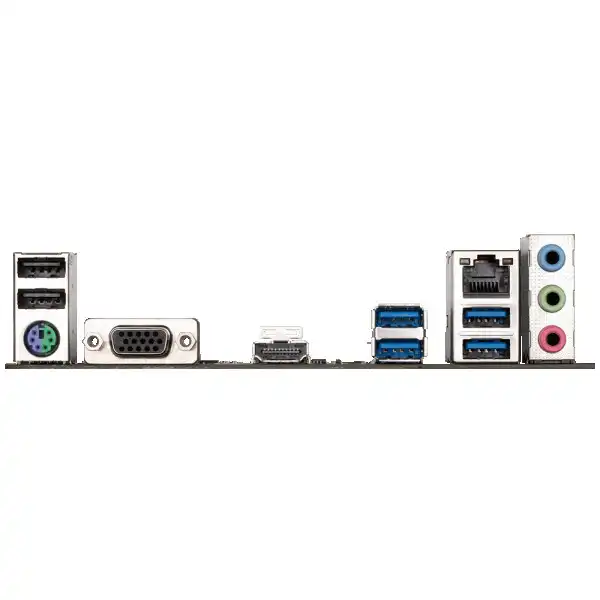

Konektori na zadnjoj strani1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Unutrašnji konektori1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Posebne mogućnostiSupport for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Operativni sistemWindows® 10; Windows® 11
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
FormatMicro ATX

ModelGigabyte A520M K V2 Matična ploča DDR4 AM4 Micro ATX
Procesorsko podnožje (Socket)AMD Socket AM4
Skup čipova (Chipset)AMD A520
Podrška za procesoreAMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
Tip memorije (RAM)DDR4
Broj memorijskih slotova2x 288-Pin DDR4
Podrška za memorije2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Podrška za grafiku - portoviIntegrated Graphics Processor:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Maximum shared memory of 16 GB
Slotovi za proširenjaCPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 portovi1x M.2 Socket 3
Čuvanje podataka - portoviCPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:
4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10
U.2 portovinema
SATA Express portovinema
SATA portovi4x SATA 6Gb/s
LANRealtek® GbE LAN chip (1 Gbps/100 Mbps)
Zvuk (Audio)Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
USB portoviCPU:
4 x USB 3.2 Gen 1 ports on the back panel

Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Konektori na zadnjoj strani1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Unutrašnji konektori1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Posebne mogućnostiSupport for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Operativni sistemWindows® 10; Windows® 11
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
FormatMicro ATX
