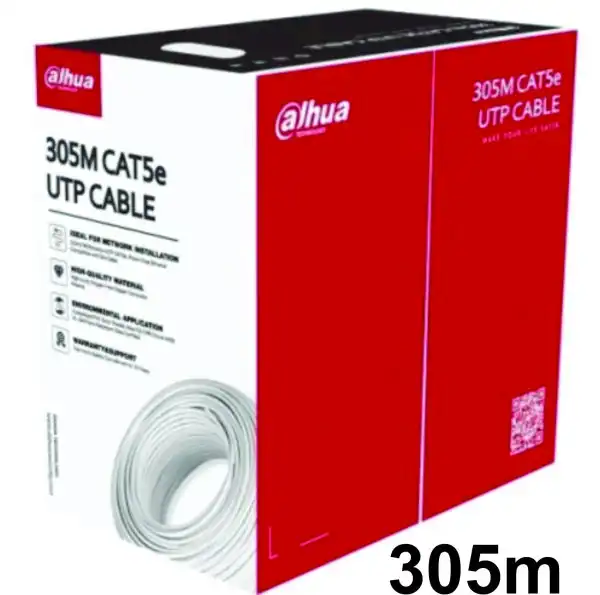

Dahua Mrezni kabal Cat5 DH-PFM920I-5EUN UTP BAKARNI 305m

Šifra: 48128
18.447,00 din.
- + Količina
Štampaj

-305 m (1000 ft)/karton UTP CAT5e, napajanje preko Etherneta, kompatibilan sa jednim kablom -Bakarni provodnik oxygen-free visoke cistoce -Prilagodeni PVC spoljni omotac; CE CPR Eca sertifikovana klasa otpornosti na vatru Material: Oxygen free copper (99.97% purity) Diameter: 0.45 mm ± 0.01 mm Insulation Material: HDPE Min. Average Thickness: 0.18 mm Diameter: 0.81mm±0.1mm Color (4 Pairs): Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown Rip Cord Material: Polyester Specification: 500D Sheath Material: PVC Min. Average Thickness: 0.5 mm Diameter: 4.7 mm ± 0.3 mm Color: White Electrical Max. DC Resistance of a Single Conductor: 12O/100 m Min. Insulation Resistance: 5000MO·km Max. DC Resistance Unbalance: 2% (pair intra), 4% (pairs inter) Dielectric Strength: No breakdown with 1KV DC for 1 min Transmission Characteristic Impedance: 100 ± 15O Near End Cross Talk: =35.30 dB/100 m@100 MHz Max. Attenuation: 24.2 dB/100 m@100 MHz Return Loss: =20.1 dB/100 m@100 MHz Mechanical Tensile Strength: Sheath=13.5 MPa, insulation=16 MPa Elongation at Break: Sheath=150%, insulation=300% Installation Bending Radius: >8 times of outer cable diameter Conductor Elongation at Break: =10% Environmental Shrinkage of Insulation: =5% Color Migration Resistance of Insulation: No migration Sheath Tensile Strength and Elongation at Break after Aging: =12.5 MPa, =100% Low Temperature Bending Test: No cracking after the test Heat Shock Test: No cracking after the test Operating Temperature: –20°C to +60°C (–4°F to 140°F) Installation Temperature: 0°C to +50°C (32°F to 122°F) Storage Temperature and Humidity: –10°C to +40°C (14°F to 104°F), <60% (RH) Security Vertical Fire Propagation Test: Comply with IEC 60332-1-2 Packaging Cable Length: 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) Inner Carton Dimensions: 364.0 mm × 364.0 mm × 216.0 mm (14.33" × 14.33" × 8.50") (L × W × H) Packaging Method: 305.0 m (1000.66 ft) a carton, one master carton with 2 inner cartons Net Weight: =7.0 kg (15.43 lb) Gross Weight: =8.0 kg (17.64 lb) Compliance Executive Standards: Q/DXJ 067-2019, EN50575-2014 Certification: CPR Eca
